The degradation and restoration of Lake Hornborga
Sven Björk Institute of Limnology, University of Lund, Sweden
Due to water level lowering, changes in hydrological regimes, removal of vegetation within catchment areas and increased supply of nutrients, sensitive wetland ecosystems are easily damaged. Among the many examples of wetland degradation caused by water level lowering, the developmental history of the Swedish Lake Hornborga (Swedish Hornborgasjön) will be described. This lake will also be used as a case study for illustrating the existing possibilities to restore degraded wetlands.
As so much wetland has been damaged, there is an urgent need for restoration methods. Every wetland area has its own unique character, but in spite of that the methods worked out within the Lake Hornborga project are applicable in many other restoration and management projects. This is the case in, for example, the Pahlavi Mordab in Iran (southwest of the Caspian Sea), where the accelerated aging through heavy overgrowth by macrophytes is caused by increased supply of silt from the deforested and overgrazed catchment area and nutrients from sewage etc. The Iranian Department of Environmental Conservation is now eager to restore and manage the important Pahlavi Mordab wetlands.
Due to rapid mobilization of investigations concerning the damage to the great Peace-Athabasca Delta in Canada caused by hydroelectric exploitation of the Peace River, the problems could be moderated by application of an ecologically designed hydrologic program.
The damage due to overgrowing is very often so severe, that a simple rising of the water level is not enough to obtain long-term results. As a rule the damage can be looked upon as irreversible and repairable only by technical measures. The difficulties of locomotion in wetlands with their mixture of open water and vegetation, soft bottoms, water level fluctuations e.t.c. have long made wetland investigations difficult and active therapy and management impossible. During recent years the production of specially designed floating and amphibious working machines and transporters have opened up new possibilities, which the Lake Hornborga restoration project will demonstrate.
Lake Hornborga is situated in the Swedish county of Västergötland, between
the great lakes Vänern and Vättern. Until man interfered with the well-organized
system of components that functioned within this lake, it maintained a rather
high degree of productivity without suffering from rapid aging. That is quite
remarkable for a lake of this size (30 km2) and shallowness (3m at
the deepest point, with most of the lake much shallower). A constellation of
such factors as rapid water renewal, well-situated inlets and outlets, strong
water and ice movements prevented the lake from becoming overgrown and provided
a good system for transporting matter from the lake.

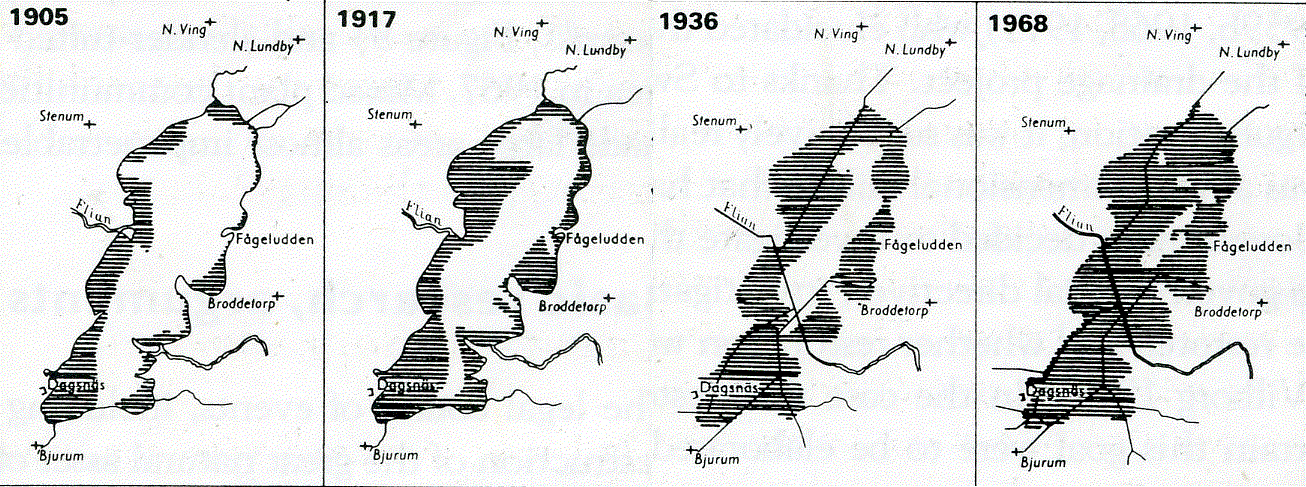

Fig. 1. Lake Hornborga. The last two water level lowering (1904-1911 and 1932-1933) have caused an almost complete overgrowth by emergent macrophyte vegetation. At the beginning of the restoration investigation (1968) the emergent vegetation comprised stands of primarily common reed (about 12 km2 ) and sedge together with mixed stands with willow bushes. The small open waters were choked with charophytes.
The last big failure resulted in a bottom that was drained in the summer and
consisted largely of calcareous mud. Since 1954 the lake area has been divided
up into a partly water filled dike in portion, where the summer water depth is
maximally 80 cm, and a summer dry part.
From a nature conservancy point of view the lake had a very high value before
it was lowered and drained during this century, especially as a nesting site and
resting place for waterfowl. The limnologic adaptations to the lowering have
resulted in a rapid decrease in the ornithological value of the lake. The
lowering has also caused great losses from an economic point of view.
One year of limnological studies made it quite clear – theoretically – that the lake could still be restored. Large-scale field experiments were begun in 1968 to work out practical methods of correcting the irreversible damage. This was made possible because of the cooperation between the National Environment Protection Board, the National Labor Market Board, the National Board of Forestry, Seiga Harvester Company in Copenhagen (manufacturer of amphibious machines), and the Institute of Limnology at the University of Lund. Thus the goal was to work out methods to solve the ecological problems in an economically favorable way. This has been done in an inspiring and fruitful cooperation among ornithologists, limnologists and limn technologists.
The restoration plan for Lake Hornborga includes a rising of the water level for a maximum depth of 2.4 m. It should take only one spring to fill the lake with water, as Hornborga Lake is flooded every year after snow melt. However, before the raising of the water level the irreversible damage caused by the lowering must be treated.
Emergent vegetation has invaded the colonizable areas and the upper sediment layer has become interwoven by roots. With the two plant species Carex acuta (sedge) and Phragmites communis (reed) covering the main area of the southern and northern parts of the lake, respectively, the sedge has developed a thick, tough and resistant root felt. The sedge root felt poses a problem, as it is impossible to remove. The reed root felt can be cut, however, by amphibious rotor cultivators that were constructed for this project. The development of amphibious and pontoon-equipped machines for the restoration of lowered lakes is continuing, and rotor cultivators strong enough to cut the sedge root felt will be constructed.
The project goal for Hornborga Lake is to transform the reed areas to open
water (about 11 km2) and to keep the sedgecovered part (about 18 km2)
for emergent vegetation as a substitute for the originally marshy areas around
the lake. When the water level has been raised, the sedge root felt will float
to the water surface. This well-known phenomenon is caused by gas (mainly
methane) that forms in and under the root felt, through which the gas bubbles
cannot penetrate. The floating root felt will rapidly be colonized by
Phragmites, Schoenoplectus (bulrush) and Carex. By means of amphibious
excavators it is possible to break up the monotony of the sedge-covered areas
and to create a mosaic of open water and biotopes safe for nesting and
attractive to birds. Even this work must be done before the raising of the water
Fig. 2. The Lake Hornborga restoration project. 1. Initial state. The area overgrown by common reed, the consolidated mud covered by coarse detritus and a dense root felt developed in the top layer of the mud. 2. The work starts with cutting during the winter. Capacity 2 hectares per hour. The reed material is being burnt. 3. During the spring high water period pontoon-equipped mowing machines are used for shortening the stubble and clearing the bottom from the layer of horizontal reed stems. 4. At low water in the summer the green shoots are cut. 5. Final preparation of the bottom by a rotor cultivator. 6. Emergent vegetation is replaced by submerged plants, and bottom fauna communities rich in species and individuals are developed.
In the winter the dry reed stems are cut by amphibious harvesters and burned
on the ice. In the spring the stubble mats are shortened to about 40 cm by
pontoon-equipped mowers. During the low water period in the summer and autumn,
amphibious machines are again utilized, first for cutting the green shoots and
then for rotor cultivating the stubble mats and root felts, the thickness of
which are about 40 cm. The requisite time per hectare is 8-10 machine hours.
Enormous masses of accumulated coarse detritus are loosened from the bottom and
transported by the spring high water to the shores where they are burned in the
summer. The exposed shores can regain to a considerable extent the
characteristics of suitable biotope for waders. Canals and dikes are eliminated
and a broad-front flow-through of water is ensured. Furthermore the ice
movements will be reestablished.

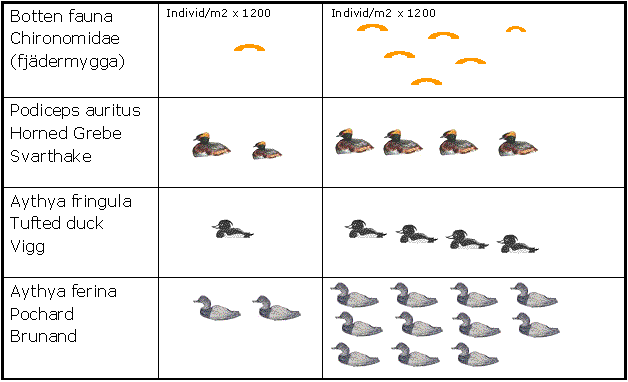

Fig. 3. Lake Hornborga before and after experiments for directing the primary production from emergent to submerged vegetation. Water level not yet raised. Comparison between conditions in 1965 and 1971. Data from H. Berggren and P.O. Swanberg. Pictures from PO Swanberg and Rudolf Söderberg.
The cost of the investigations on the possibilities of restoring
Lake Hornborga amounted by 1974 to about 600,000 US $. This rum includes all
studies made by ornithologists, limnologists, technologists, economists and
agriculturists. It also includes field experiments, purchase and construction of
technical equipment etc. Within the near future the Swedish government will
decide on the final restoration. The costs for the remaining limn logical
restoration of Lake Hornborga, i.e. the measures for directing the development
of the vegetation etc., are estimated to another 600,000 US $. The cost for the
total project is of the order of magnitude of 4,000,000 US $.
